Light set for all vehicle

Commande astucieuse

Clever control

The control of the beam is done with only one chanel (remote control stick or momemtary 3 positions switch).

Turn signals, brake lights and reverse; are controlled by steering and acceleration.

see the technical presentation

the lght function are:
-Position
-Passing light
-Driving light
-Right / left blinker
-Backward light
-Brake light

Cablage sans outil

You use a normal extension servo cable to connect each module to the main board. The Kotronik system is a multplexed control system same as actual reals cars.

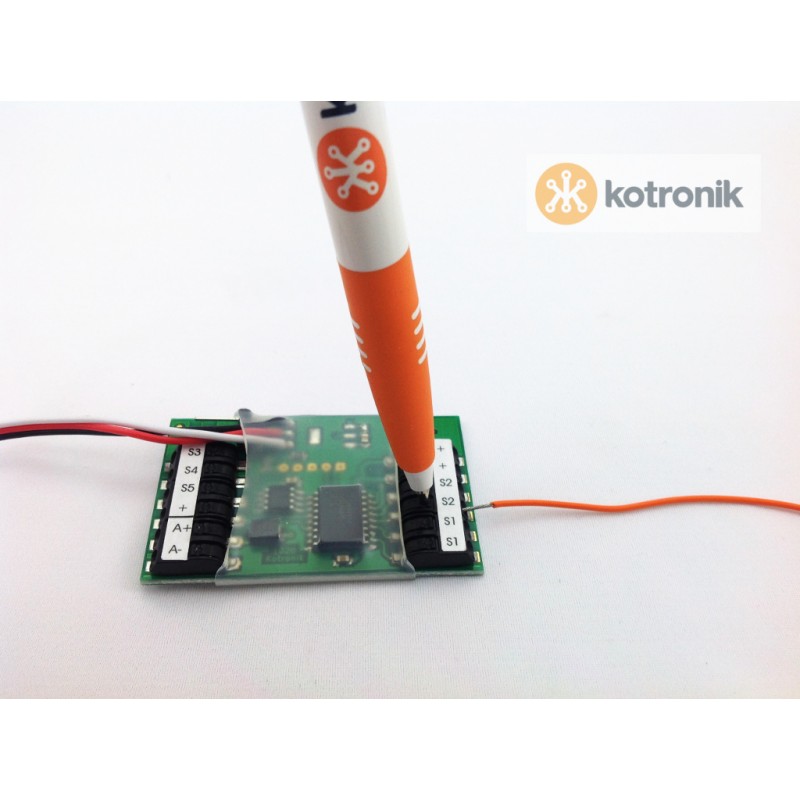

To wire the LED, you need to strip the electrical wire and to insert into the connector. If you use LED you need to have external resistors to protect the LED. You can find LED in this website for the most common vehicle (crawler, Volvo, Mercedes SK, King hauleur...).

The external supply is from 6 to 12V.
The output voltage is equal to the external supply voltage.
Output current: 300mA each chanel  (so 2x300mA For S1 and S2 double chanel)

Evolutif

It is very simple to add lights using a "Y" servo cable.
The number of board is limited to 8.

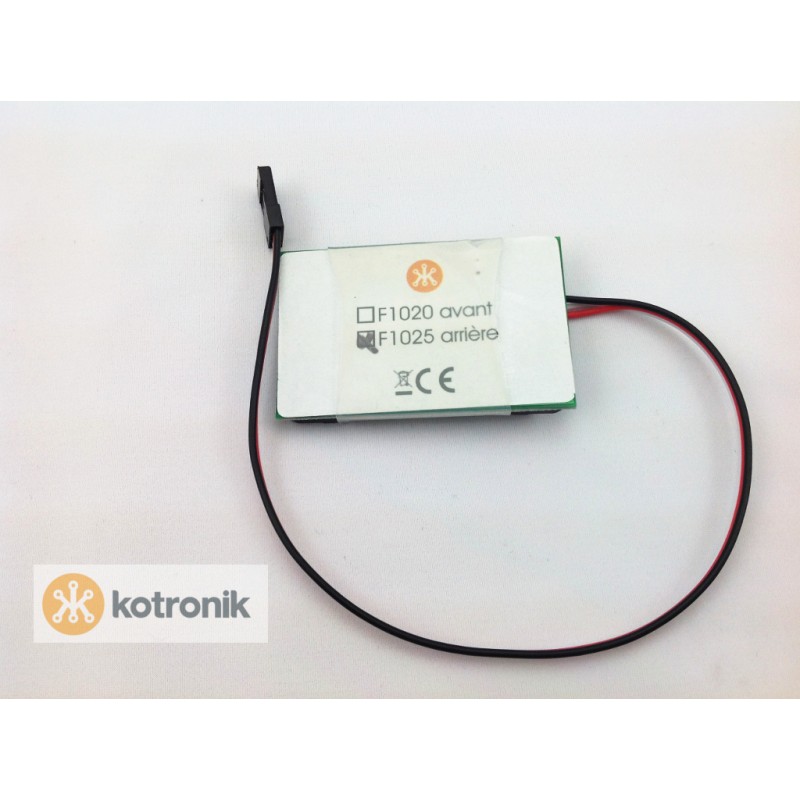

Several additional boards can be installed to control the long range light, the cap light or beacon. Such as adding a ramp lights, simply connect an F1015 module.

The additionals functions control by F1015 are :
-Position
-Passing light
-Driving light
-Right / left blinker
-Fog light
-Long range light
-Brake light
-Auxiliary (for beacon, flash light, ...)

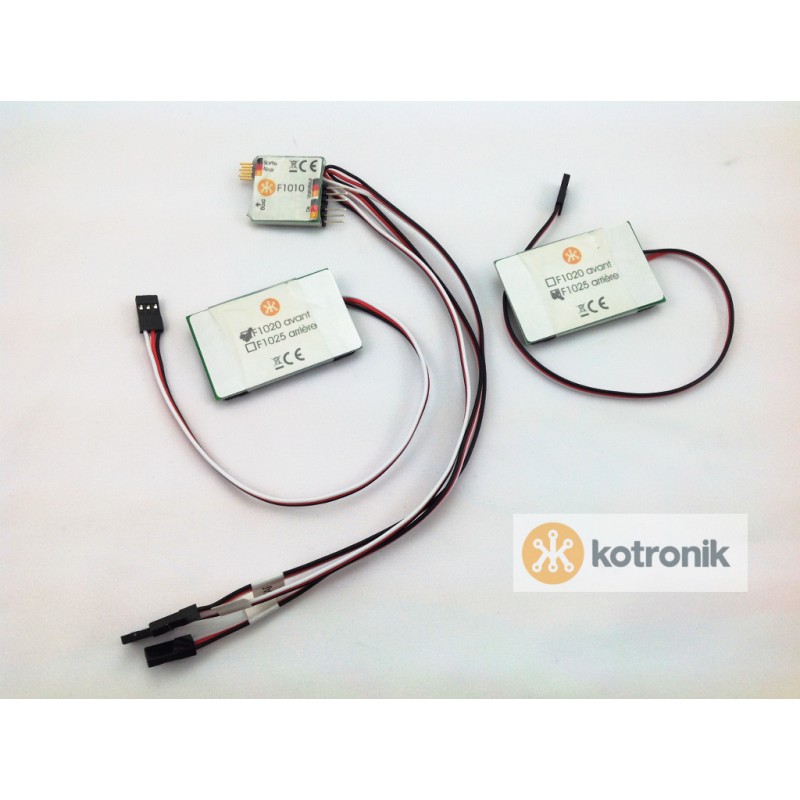

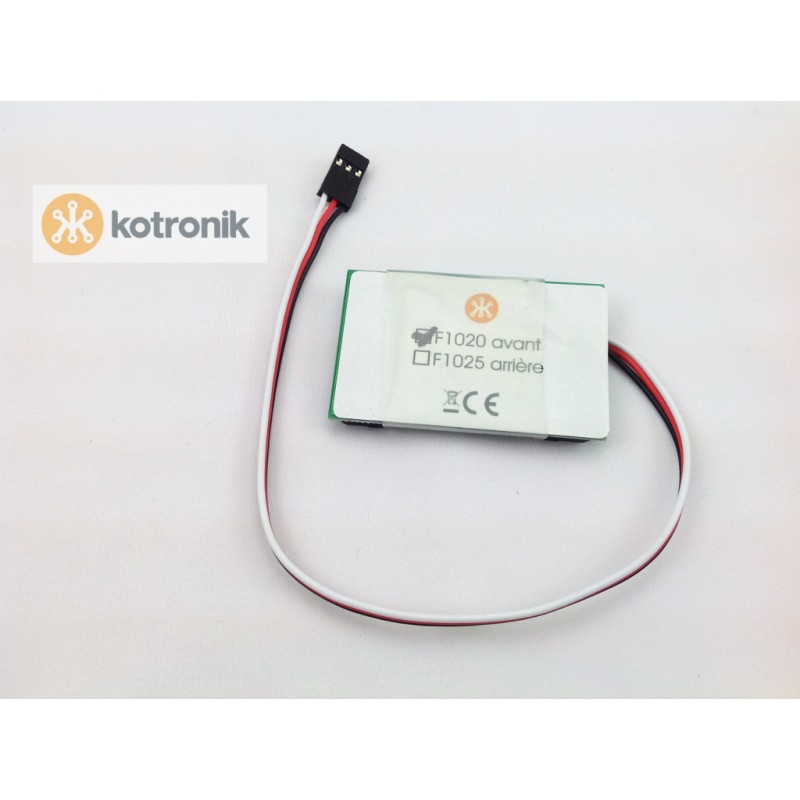

Included: 1 front board.

Download

5 functions decoding board manual F1025 (F1020)
